Suunto Ambit3 Run User Guide - 2.5

Routes

You can create a route in Movescount, or import a route created with another service.

To add a route:

1. Go to www.movescount.com and log in.
2. Sync your Suunto Ambit3 Run with Movescount using Suuntolink and the supplied USB cable.

Routes could also be deleted through Movescount.

Navigating a route

You can navigate a route you have downloaded to your Suunto Ambit3 Run from Movescount (see Routes) or recorded from an exercise (see Recording tracks).

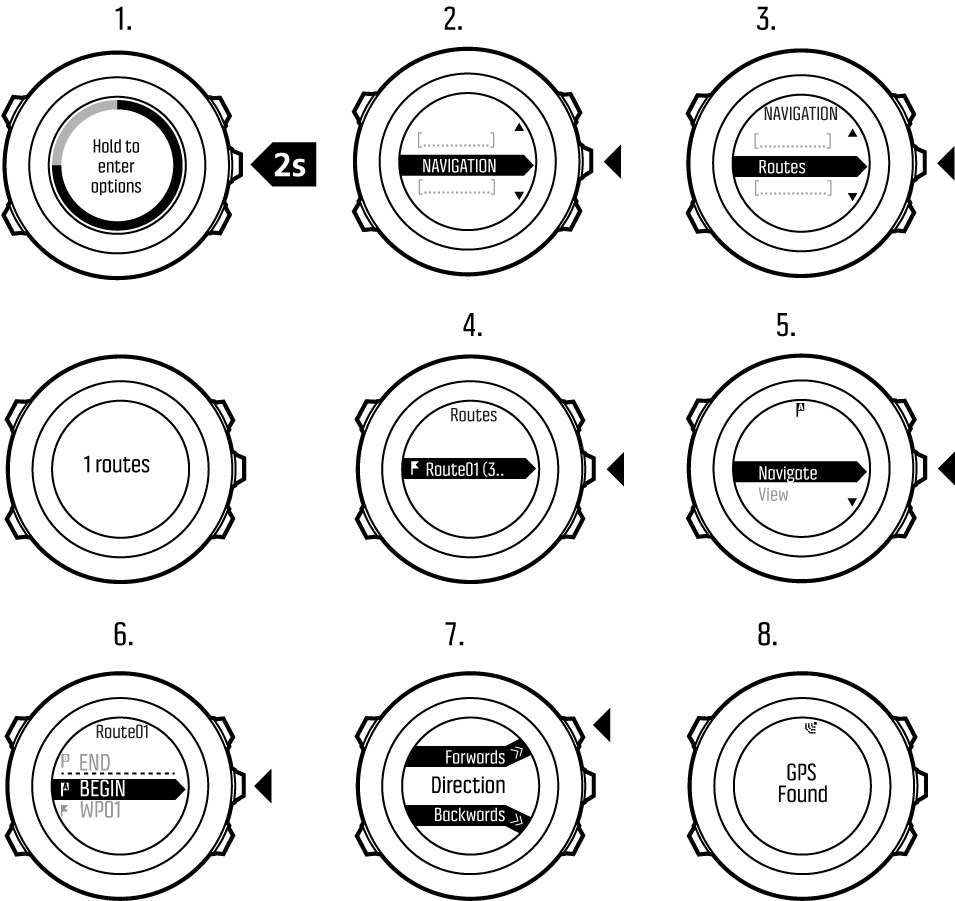

To navigate a route:

1. Enter a sport mode that has GPS activated and keep Next pressed to access the options menu.
2. Scroll to Navigation with Start Stop and enter with Next.
3. Scroll to Routes with Start Stop and enter with Next. The watch displays the number of saved routes and after that a list of all your routes.
4. Scroll to the route you want to navigate with Start Stop or Light Lock. Select with Next.
5. Press Next and select Navigate. Alternatively, you can select View to first preview a route.
6. The watch displays all the waypoints on the selected route. Scroll to the waypoint you want to use as the starting point with Start Stop or Light Lock. Accept with Next.
7. If you selected a waypoint in the middle of the route, Suunto Ambit3 Run prompts you to select the direction of the navigation. Press Start Stop to select Forwards or Light Lock to select Backwards. If you selected the first waypoint as the starting point, Suunto Ambit3 Run navigates the route forward (from the first to the last waypoint). If you selected the last waypoint as the starting point, Suunto Ambit3 Run navigates the route backwards (from the last to the first waypoint).
8. If you are using the compass for the first time, you need to calibrate it (see Calibrating compass). After activating the compass, the watch starts searching for a GPS signal and displays GPS found after acquiring the signal.

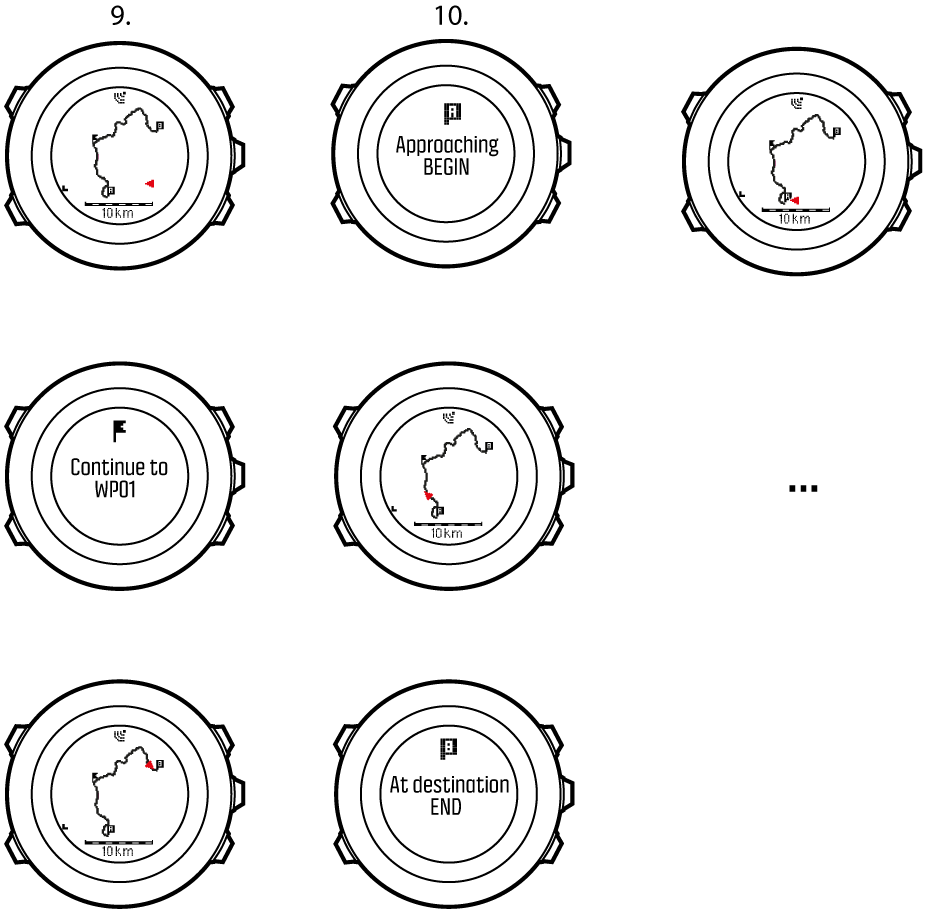

9. Start navigating to the first waypoint on the route. The watch informs you when you are approaching the waypoint and automatically starts navigating to the next waypoint on the route.
10. Before the last waypoint on the route the watch informs you that you have arrived at your destination.

To skip a waypoint on a route:

1. While you are navigating a route, keep Next pressed to access the options menu.
2. Press Next to select Navigation.
3. Scroll to Skip waypoint with Start Stop and select with Next. The watch skips the waypoint and starts navigating directly to the next waypoint on the route.

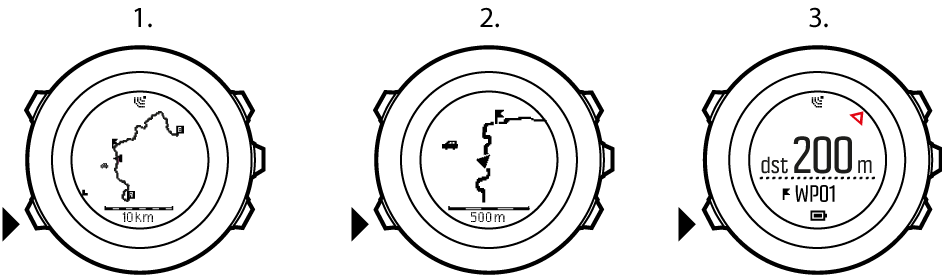

During navigation

During navigation, press View to scroll the following views:

1. the full track view showing the whole route
2. zoomed-in view of the route. You can change the map orientation in the watch settings under GENERAL » Map.
3. Heading up: Displays the zoomed-in map with the heading pointing up.
4. North up: Displays the zoomed-in map with the north pointing up.
5. waypoint navigation view

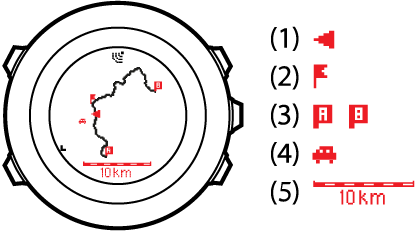

Full track view

The full track view shows you the following information:

• (1) arrow indicating your location and pointing to the direction of your heading.
• (2) the next waypoint on the route
• (3) the first and last waypoint on the route
• (4) The closest POI is shown as an icon.
• (5) scale on which the full track view is shown

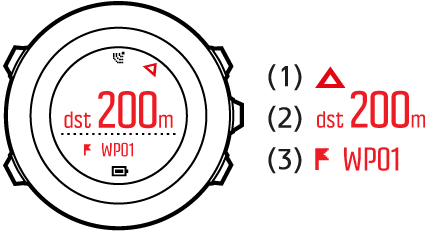

Waypoint navigation view

The waypoint navigation view shows you the following information:

• (1) arrow pointing to the direction of the next waypoint
• (2) your distance to the next waypoint
• (3) the next waypoint you are headed towards
