Suunto Traverse User Guide - 2.0

Routes

You can create a route with the route planner in Suunto Movescount or export the track of a recorded activity to the planner.

To add a route:

  1. Go to Suunto Movescount and log in.
  2. Under Plan & Create, browse to Routes to search and add existing routes or browse to Route Planner to create your own route.
  3. Save the route and select the 'Use this route in my…' option.
  4. Sync your Suunto Traverse with Suunto Movescount using Suunto Movescount App (see Syncing with mobile app) or by using Moveslink and the supplied USB cable.

Routes are also deleted through Suunto Movescount.

To delete a route:

  1. Go to www.movescount.com and log in.
  2. Under Plan & Create, browse to Route Planner.
  3. Under MY ROUTES, click on the route you want to delete and click DELETE.
  4. Sync your Suunto Traverse with Suunto Movescount using Suunto Movescount App (see Syncing with mobile app) or by using Moveslink and the supplied USB cable.

Navigating a route

You can navigate a route you have transferred to your Suunto Traverse from Movescount (see 3.20 Routes) or from a log in your logbook with GPS data. You get a preview of the route based on the route list or logbook selection.

If you are using the compass for the first time, you need to calibrate it (see Calibrating compass). After activating the compass, the watch will begin searching for a GPS signal. After the watch acquires a GPS signal, you can begin to navigate a route.

To navigate a route:

  1. Press START to enter the start menu.
  2. Scroll to NAVIGATION with START and press NEXT.
  3. Scroll to Routes or NAVIGATION and press NEXT to enter .
  4. Scroll to the route you want to navigate with START or LIGHT and press NEXT.
  5. Press NEXT to select Navigate. All navigating is recorded. If you watch has more than one sport mode, you are prompted to select one.
  6. Select Forwards or Backwards to chose the direction you want to navigate (from the first waypoint or the last).

route select direction

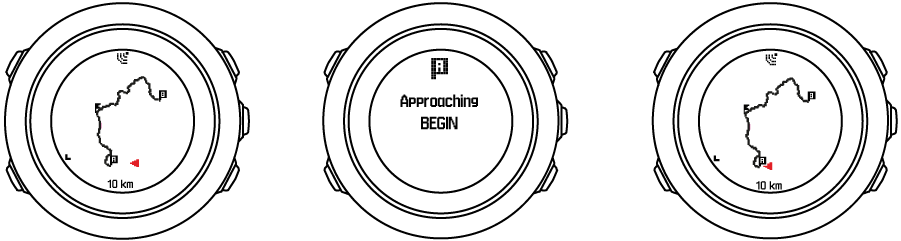

  1. Start navigating. The watch informs you when you are approaching the beginning of the route.

route begin

  1. The watch informs you when you have arrived at your destination.
TIP:

You can also start navigating while recording an activity (see Recording activities).

During navigation

During navigation, press VIEW to scroll the following views:

  • full track view showing the whole route
  • zoomed-in track view of the route: by default, the zoomed-in view is scaled to a 100 m (0.1 mi) scale; the scale is larger if you are far away from the route

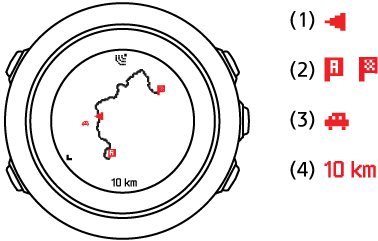

Track view

The full track view shows you the following information:

  • (1) arrow indicating your location and pointing to the direction of your heading.
  • (2) the beginning and end of the route
  • (3) The closest POI is shown as an icon.
  • (4) scale of the track view

route track view

NOTE:

In the full track view the north is always up.

Map orientation

You can change the map orientation in the options menu under NAVIGATION » Settings » Map » Orientation.

  • Heading up: Displays the zoomed-in map with the heading pointing up.
  • North up: Displays the zoomed-in map with the north pointing up.

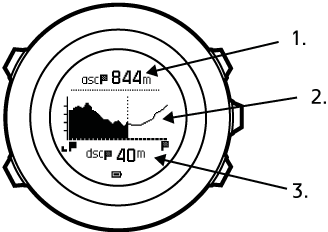

Ascent profile view

The ascent profile view shows you the following information:

  1. Remaining ascent
  2. Real-time altitude profile graph
  3. Remaining descent

ascent profile Traverse

If you veer too far off the route track, the profile graph is not updated. Instead, the text Off route is shown below the graph. You need to return to the track to get accurate ascent calculations.
