Suunto Tank POD User Guide
Pairing Suunto Tank POD
For Suunto EON Core, EON Steel, and EON Steel Black
To pair your Suunto Tank POD:
- After installing Suunto Tank POD and opening the valve, wait for the green LED on the POD to flash.
- If your dive computer has a blank screen, press any button to activate it.
- Use proximity pairing: Hold your dive computer close to the Suunto Tank POD. Make sure you follow the instructions in Tank POD alignment.
After a few seconds, a menu pops up on the screen showing the Suunto Tank POD serial number, battery status, and the tank pressure. Select the correct gas from the list to pair with your device and press middle button to confirm pairing.
The battery level indication shown when pairing the Suunto Tank POD is an approximation only.
Repeat the procedure above for additional Suunto Tank POD devices and select different gases for each POD.
Alternatively, you can pair your Suunto Tank POD from the menu:
In the Gases menu, select the gas you want your Suunto Tank POD to pair with.

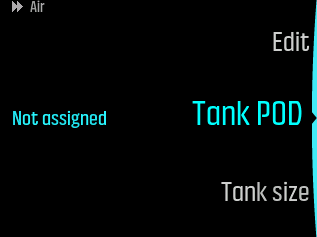

Press middle button to open the gas settings and select Tank POD.

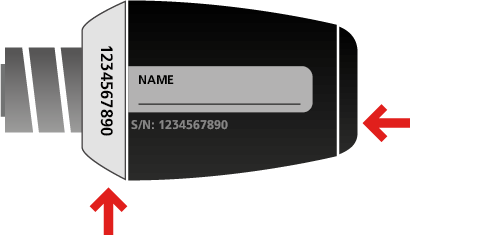

From the list of Tank PODs, select the one which matches the serial number of your Suunto Tank POD.
Make sure the Suunto Tank POD has been activated by ensuring the tank pressure reading shows on screen and POD green led is blinking.
In the dive main views, only one tank pressure is shown and corresponds to the active gas. When you change gas, the displayed tank pressure changes accordingly.
If there are several divers using Tank PODs, always check before you dive that the POD number of your selected gas corresponds to the serial number on your POD.
Remove pressure from the Tank Pod when not diving to save battery life.
For Suunto D5
To pair your Suunto Tank POD:
- After installing Suunto Tank POD and opening the valve, wait for the green LED on the POD to flash.
If your dive computer has a blank screen, press any button to activate it.
Use proximity pairing: Hold your dive computer close to the Suunto Tank POD. Make sure you follow the instructions in Tank POD alignment.
After a few seconds, a menu pops up on the screen showing the Suunto Tank POD serial number, battery status, and the tank pressure. Select the correct gas from the list to pair with your device and press middle button to confirm pairing.
NOTE:Battery level information is displayed only if the battery is low. The indication shown when pairing the Suunto Tank POD is an approximation only.
Repeat the procedure above for additional Suunto Tank POD devices and select different gases for each POD.
Alternatively, you can pair your Suunto Tank POD from the menu:
In the Gases menu, select the gas you want your Suunto Tank POD to pair with.
Press middle button to open the gas settings and select Tank POD.
From the list of Tank PODs, select the one which matches the serial number of your Suunto Tank POD.
Make sure the Suunto Tank POD has been activated by ensuring the tank pressure reading shows on screen and POD green led is blinking.
In the dive main views, only one tank pressure is shown and corresponds to the active gas. When you change gas, the displayed tank pressure changes accordingly.
If there are several divers using Tank PODs, always check before you dive that the POD number of your selected gas corresponds to the serial number on your POD.
Remove pressure from the Tank Pod when not diving to save battery life.
