Pairing POD/heart rate belt
Pair your Suunto Ambit2 with optional Suunto PODs (Bike POD, Power POD, heart rate belt, Foot POD or Cadence POD) and ANT+ PODs to receive additional speed, distance, power and cadence information during exercise. Visit www.thisisant.com/directory for a list of compatible ANT+ products.
You can pair up to six PODs at a time:
- three Bike PODs (only one Bike POD can be used at a time)
- one Cadence POD
- one Foot POD
- one Power POD
If you pair more PODs, Suunto Ambit2 remembers the latest paired POD of each POD type.
The heart rate belt and/or POD included in your Suunto Ambit2 package are already paired. Pairing is required only if you want to use a new heart rate belt or a POD with the device.

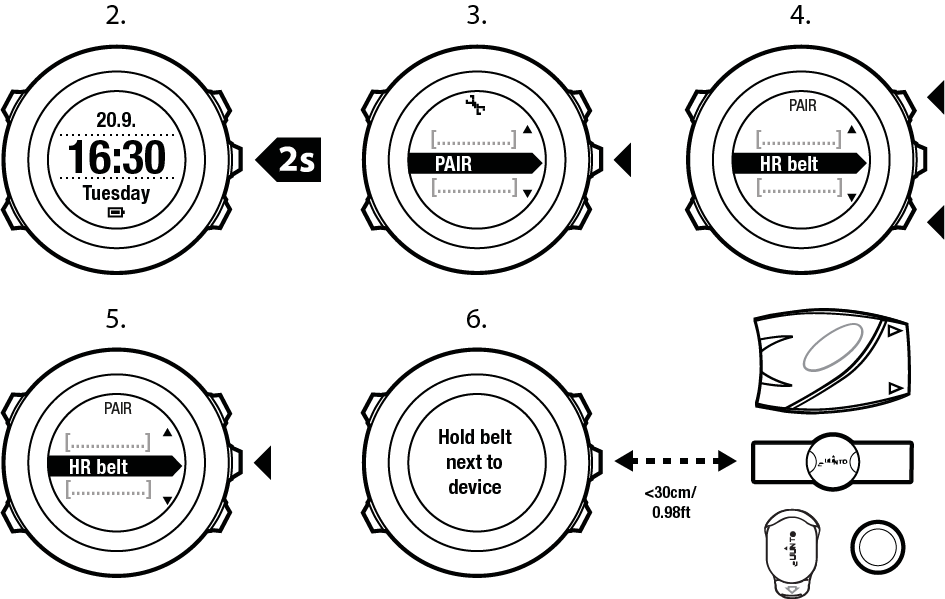

To pair a POD/heart rate belt:
- Activate the POD/heart rate belt:
- Bike POD: rotate the tire with the installed Bike POD.
- Power POD: rotate the crank or tire with the installed Power POD.
- Heart rate belt: moisten the contact areas and put on the belt.
- Cadence POD: rotate the bike pedal with the installed Cadence POD.
- Foot POD: tilt Foot POD 90 degrees.
- Keep pressed to enter the options menu.
- Scroll to Pair with and enter with .
- Scroll the accessory options Bike POD, Power POD, HR belt, Foot POD and Cadence POD with and .
- Press to select a POD or heart rate belt and start pairing.
- Hold your Suunto Ambit2 close to the POD/belt (<30 cm) and wait for the device to notify that the POD/belt has been paired.
If the pairing fails, press to retry, or to return to the pairing setting.
You can pair different types of power PODs with your Suunto Ambit2. For more information, see the power POD user guide.
You can also activate the heart rate belt by moistening and pressing both electrode contact areas.
Troubleshooting: Heart rate belt pairing fails
If the heart rate belt pairing fails, try the following:
- Check that the strap is connected to the module.
- Check that you are wearing the heart rate belt correctly (see Putting on heart rate belt).
- Check that the electrode contact areas of the heart rate belt are moist.
For more information on pairing PODs, see the POD user guide.
