Suunto Ambit3 Vertical User Guide - 1.2

Service menu

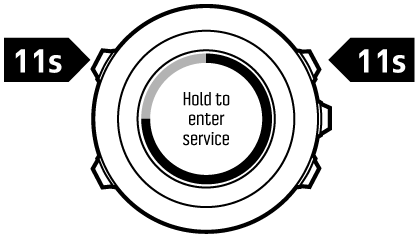

To access the service menu, keep Back Lap and Start Stop pressed simultaneously until the watch enters the service menu.

service menu Ambit3

The service menu includes the following items:

  • Info:
    • Air pressure: shows the current absolute air pressure and temperature.
    • BLE: shows the current Bluetooth Smart version
    • Version: shows the current software and hardware version
  • Test:
    • LCD test: allows you to test that the LCD works properly
    • Vibration test: allows you to test that vibration alerts are working properly
  • Action:
    • Power off: allows you to put the watch into deep sleep
    • GPS reset: allows you to reset GPS
    • Clear data: clear recovery test calibration and delete ascent history
NOTE:

Power off is a low power state. Connect the USB cable (with power source) to wake up the watch. The initial setup wizard starts. All settings except time and date are maintained. Just confirm them through the startup wizard.

NOTE:

The watch switches to power saving mode when it is static for 10 minutes. The watch re-activates when moved.

NOTE:

Service menu content is subject to change without notice during updates.

Resetting GPS

In case the GPS unit cannot find a signal, you can reset GPS data in the service menu.

To reset GPS:

  1. In the service menu, scroll to Action with Light Lock and enter with Next.
  2. Press Light Lock to scroll to GPS reset and enter with Next.
  3. Press Start Stop to confirm GPS reset, or press Light Lock to cancel.
NOTE:

Resetting GPS resets GPS data, compass calibration values and recovery time. Saved logs are not removed.
