Suunto Ambit3 Peak User Guide - 2.5

FusedAlti

FusedAltiTM provides an altitude reading that is a combination of GPS and barometric altitude. It minimizes the effect of temporary and offset errors in the final altitude reading.

NOTE:

By default, altitude is measured with FusedAlti during exercises that use GPS and during navigation. When GPS is switched off, altitude is measured with the barometric sensor.

If you do not want to use FusedAlti in altitude measurement, you can disable it in the options menu.

To disable FusedAlti:

  1. Keep Next pressed to access the options menu.
  2. Scroll to Alti-baro with Light Lock and enter with Next.
  3. Scroll to FusedAlti with Start Stop and select with Next.
  4. Set FusedAlti Off with Start Stop or Light Lock and accept with Next.

When the device is in time mode, you can search a new reference for barometric altitude with FusedAlti. This activates the GPS for a maximum of 15 minutes.

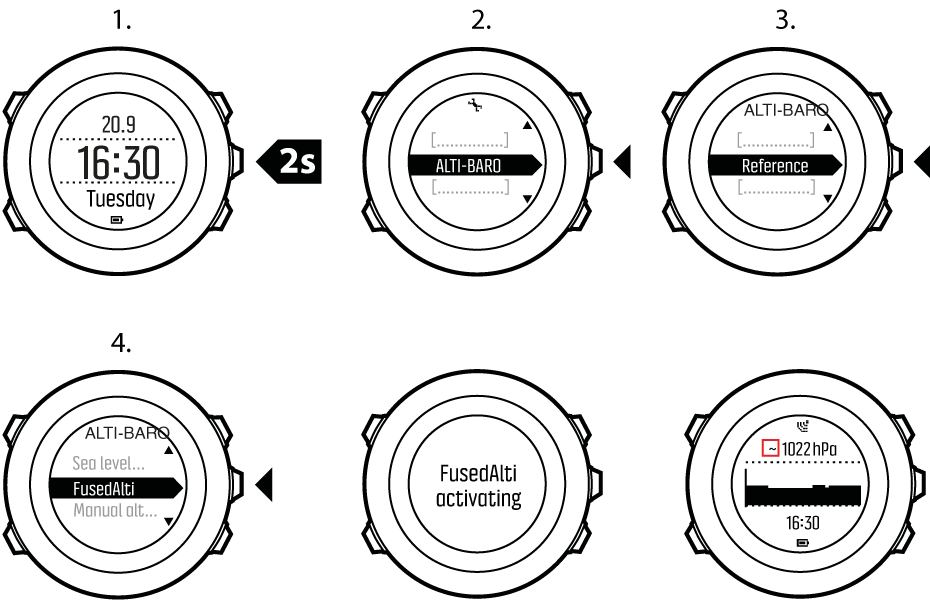

To search a new reference for barometric altitude with FusedAlti:

  1. Keep Next pressed to enter the options menu.
  2. Scroll to Alti-baro with Light Lock and enter with Next.
  3. Scroll to Reference with Light Lock and enter with Next.
  4. Scroll to Auto adjust with Start Stop and select with Next. GPS is switched on and the device starts calculating altitude based on FusedAlti.

new reference FusedAlti Ambit3 Peak

NOTE:

In good conditions it takes 4 – 12 minutes for FusedAlti to activate. During that time, Suunto Ambit3 Peak shows barometric altitude and ~ is shown with the altitude reading to indicate that the altitude may not be correct.
