Suunto Tank POD 使用手冊

安裝至高壓軟管

B 型限流器:

typeB TankPOD

Suunto Tank POD 安裝至一級頭高壓頭的高壓軟管延長部分:

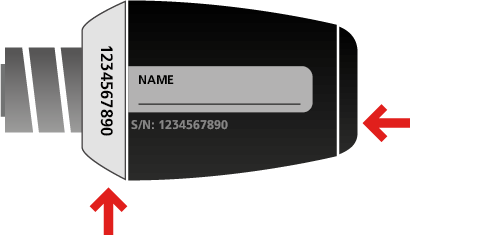

  1. 請寫下序號。稍後您將需要它來識別 Suunto Tank POD。您可以在裝置的金屬底座上找到序號。

    tank pod serial number new

    注释:

    自 2021 年 5 月開始,所有新 Suunto Tank POD 裝置的金屬底座和外殼上都有序號。

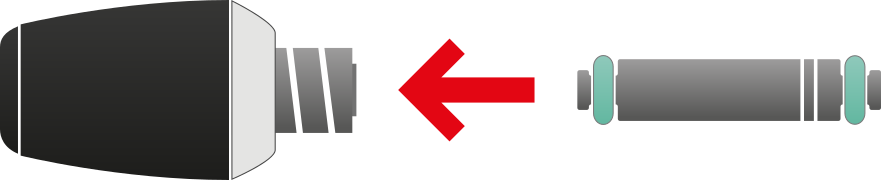

  2. 將 B 型限流器的平順端插入 Suunto Tank POD 中。有溝紋的一端應保持可見。

    2 typeB TankPOD

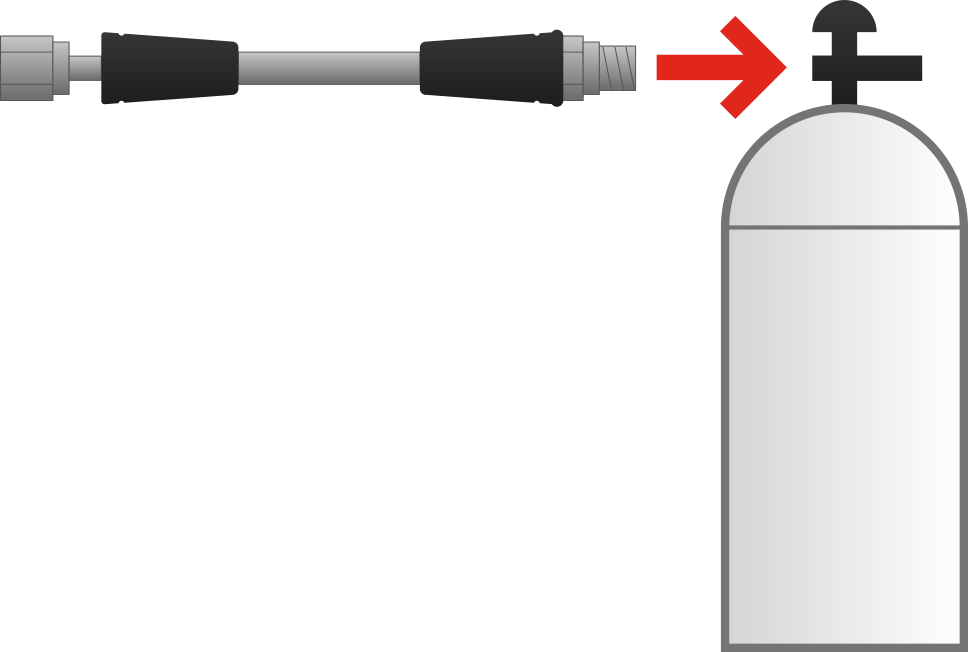

  3. 將高壓管延長部分裝在一級頭高壓頭上。

    3 typeB TankPOD

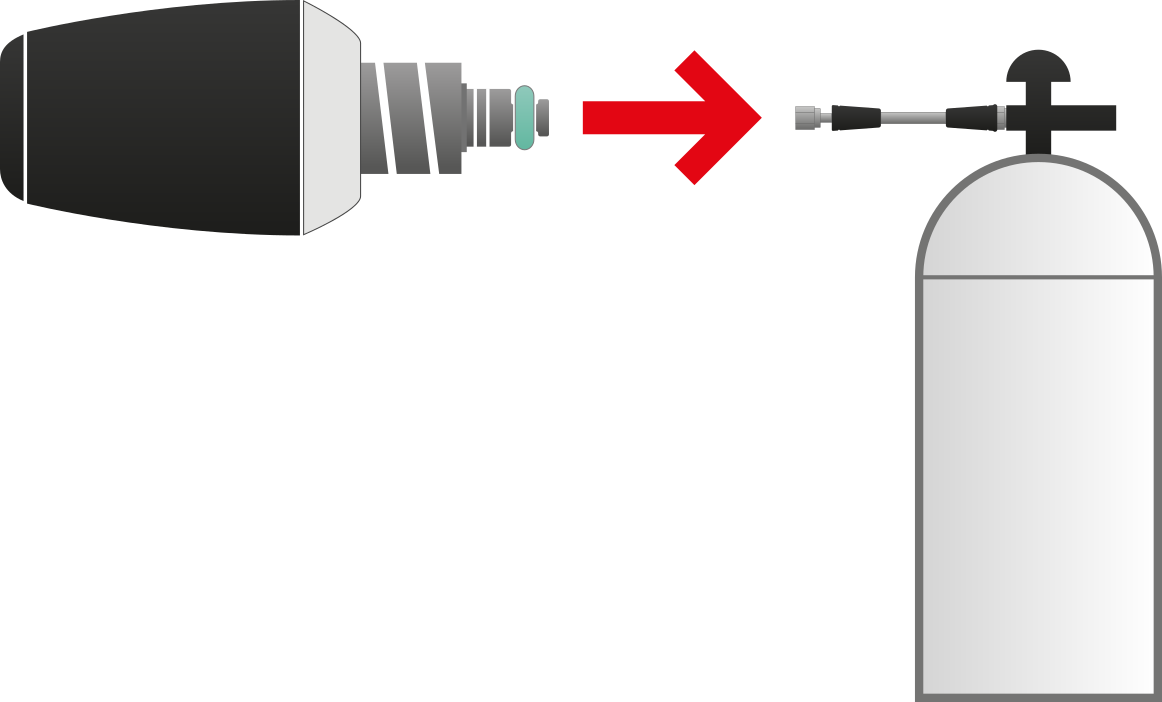

  1. Suunto Tank POD 連接至高壓管延長部分的末端,確保節流器溝紋的一端插入軟管中。

    4 typeB TankPOD

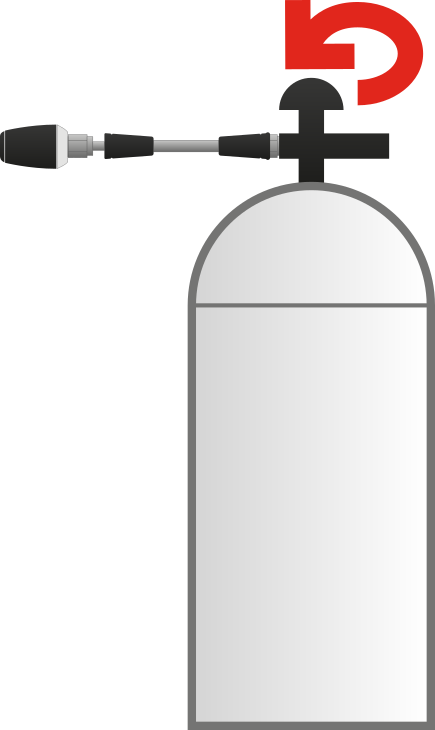

  2. 緩慢平穩的開啟壓力閥。將裝備加壓時別過頭不看。

    5 typeB TankPOD

警告:

加壓潛水裝備時,請確保周遭無其他人員。

警告:

配對 Tank POD 時顯示的電池電量指示只是約略值。POD 電池耗電速度可能比指示建議更快。

注释:

用於 Nitrox 的高壓軟管應滿足 EN 250 和 EN 13949 標準的要求。
