Suunto Ambit3 Vertical User Guide - 1.1

Swimming

You can use your Suunto Ambit3 Vertical for recording swimming exercises in a pool or openwater.

When used together with the Suunto Smart Sensor, you can also record your heart rate while you are swimming. The heart rate data is automatically uploaded to your Suunto Ambit3 Vertical once you get out of the water.

Pool swimming

When using the pool swimming sport mode, Suunto Ambit3 Vertical measures your swimming speed based on the pool length. Each pool length creates a lap that is shown in Movescount as part of the log.

To record pool swimming:

  1. Press Start Stop to enter the start menu.
  2. Press Next to enter Exercise.
  3. Scroll to Pool swimming using Light Lock and select with Next.
  4. Select the pool length. You can select the pool length from the predefined values, or select the custom option to specify the pool length. Scroll the values with Start Stop and Light Lock and accept with Next.
  5. Press Start Stop to start recording your swimming.

pool swimming

Swimming styles

You can teach your Suunto Ambit3 Vertical to recognize your swimming style. After teaching the swimming styles, Suunto Ambit3 Vertical detects them automatically when you start swimming.

To teach swimming styles:

  1. While you are in the Pool swimming sport mode, keep Next pressed to enter the options menu.
  2. Press Next to select Swimming.
  3. Press Next to select Teach swim style.
  4. Scroll the swimming style options with Light Lock and Start Stop. Select a suitable swimming style with Next. You can exit the setting and continue your exercise by selecting End. The available swimming style options are:
  5. fly (butterfly)
  6. back (backstroke)
  7. breast (breaststroke)
  8. free (freestyle)
  9. Swim the pool length in the swimming style you selected.in
  10. After you have finished swimming, press Start Stop to save the style. If you do not want to save the style, press Light Lock to return to the swimming style selection.

teaching swimming styles Ambit3

TIP:

You can exit teaching swimming styles any time by keeping Next pressed.

To reset taught swimming styles back to defaults:

  1. In the Pool swimming mode, keep Next pressed to enter the options menu.
  2. Press Next to select Swimming.
  3. Scroll to Reset taught styles with Start Stop and select with Next.

Swimming drills

You can do swimming drills any time during your swimming workout. If you do a drill with a swimming style that the watch does not detect as swimming (for example, using only your legs), you can add the pool length manually for each drill to keep your total distance correct.

NOTE:

Do not add the drill distance until you have finished your drill.

To do a drill:

  1. While you are recording your pool swimming, keep Next pressed to access the options menu.
  2. Press Next to enter Swimming.
  3. Press Next to select Drill and start swimming your drill.
  4. After you have finished your drill, press View to adjust the total distance, if necessary.
  5. To end the drill, go back to Swimming in the options menu and select End drill.

Openwater swimming

When using the openwater swimming mode, Suunto Ambit3 Vertical measures your swimming speed using GPS and shows you real-time data during the swim.

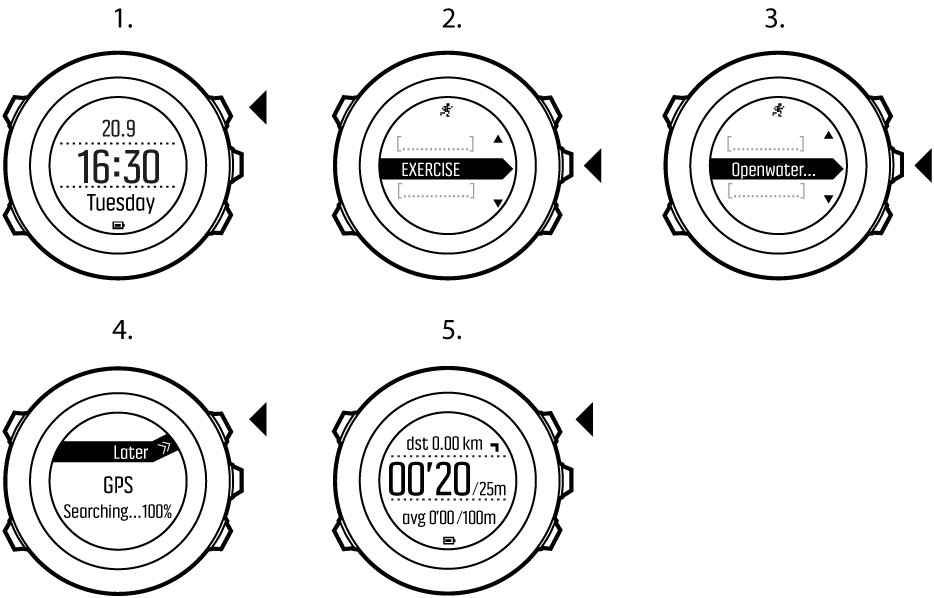

To record an outdoor swimming log:

  1. Press Start Stop to enter the start menu.
  2. Press Next to enter Exercise.
  3. Scroll to Openwater swim with Light Lock and select with Next.
  4. Wait for the watch to notify that a GPS signal has been found.
  5. Press Start Stop to start recording your swimming log.

openwater swimming

TIP:

Press Back Lap to add laps manually during the swim.
